Interlocking Paver Patios: Patterns, Building System & Cost Guide
Mortar-free concrete pavers that lock edge-to-edge on a sand bed — the durable, DIY-friendly system behind most modern patios.
.webp)
Quick Specs
At a Glance- Design Style
- Durable, Mortar-Free, Modular
- Difficulty Rating
- Intermediate
- Best For
- Patios, walkways, driveways and pool decks needing frost resistance
- Estimated Time
- 1–2 weekends for a 300–400 sq ft patio
- Materials
- Interlocking concrete pavers, geotextile fabric, CR-6 base, ASTM C33 bedding sand, polymeric joint sand, edge restraints
- Cost Range
- $16–$28 / sq ft installed · $7–$15 / sq ft DIY materials
★Key benefit: Pavers lock together without mortar and flex with the ground, so the surface resists cracking through freeze-thaw.
.webp)
What Is an Interlocking Paver Patio?
Interlocking pavers are concrete units (2⅜ inches or thicker) designed with molded edge shapes that seat tightly together, plus a structural base system below: geotextile fabric to separate soil, compacted crushed stone, and a 1-inch screeded sand bed on which the units sit loose.
Why homeowners choose it: Crack resistance — the surface flexes microscopically under load and temperature instead of locking into a rigid slab. Repairability — a chipped or stained paver lifts out and swaps for a spare in minutes. Base honesty — no concrete pour means no waiting on curing and no expansion joints to fail.
The system works for patios, walkways, driveways and pool decks. Only base depth changes with the load: 4 inches of compacted gravel for foot traffic, 6–8 inches under vehicles.
Types & Varieties of Interlocking Pavers
Mechanical-Edge Pavers: Factory-molded lips and bevels lock units together — the standard system used in most residential patios.
Cobble-Look & Tumbled Interlocking: Softened edges and varied tones mimic old-world cobblestone while keeping modern edge-locking geometry.
Permeable Interlocking Pavers: Open joints filled with aggregate let water drain straight through — required by many municipalities for new hardscape.
Large-Format Interlocking Slabs: 24×24 and 24×48 units with engineered edges produce an almost seamless modern surface that still flexes as a system.
.webp)
Choosing the Right Materials for Your Interlocking Pavers Patio
Compare the most common paver materials side by side — pick by look, budget, or intended use.
| Material | Why It Works | Cost / sq ft | Best For |
|---|---|---|---|
| Standard Concrete Pavers | The DIY standard — uniform, affordable, frost-tolerant and available in dozens of colors and edge profiles. | $2–$6 / sq ft | Patios, walkways and light-driveway zones |
| Permeable Concrete Pavers | Designed for open aggregate joints; manages stormwater on site and often satisfies local drainage codes. | $4–$9 / sq ft | Drainage-critical or code-constrained sites |
| Porcelain Slabs (Interlocking) | Premium large-format option with stain-proof, frost-resistant surfaces and precision edges for tight joints. | $8–$18 / sq ft | Premium contemporary patios and pool decks |
Installation Tips & Common Mistakes to Avoid
What the pros do differently on interlocking pavers patios — and the failure points that show up years later.
✓ Installation Tips
- ✓
Respect base depth: 4 inches of compacted CR-6 for foot-traffic patios, 6–8 inches under any vehicle load. Skipping depth is the #1 cause of wavy patios two years in.
- ✓
Never compact the bedding sand before laying pavers — units need that uncompacted inch to seat flat when the plate compactor runs over the finished field.
- ✓
Lock the perimeter with commercial-grade edge restraints spiked every 12 inches, or the field will spread outward within a few seasons.
⚠ Common Mistakes to Avoid
- ✕
Using residential-grade (thin) edge restraints. They bend and fail — commercial 6-ft sections spiked every 12" are the only reliable option.
- ✕
Skipping geotextile fabric. Without it, base aggregate migrates into the soil below and the patio slowly sinks and undulates.
- ✕
Substituting play sand or mason sand for ASTM C33 bedding sand. Fine sands compact into a dense, non-draining layer that rocks pavers and pools water.

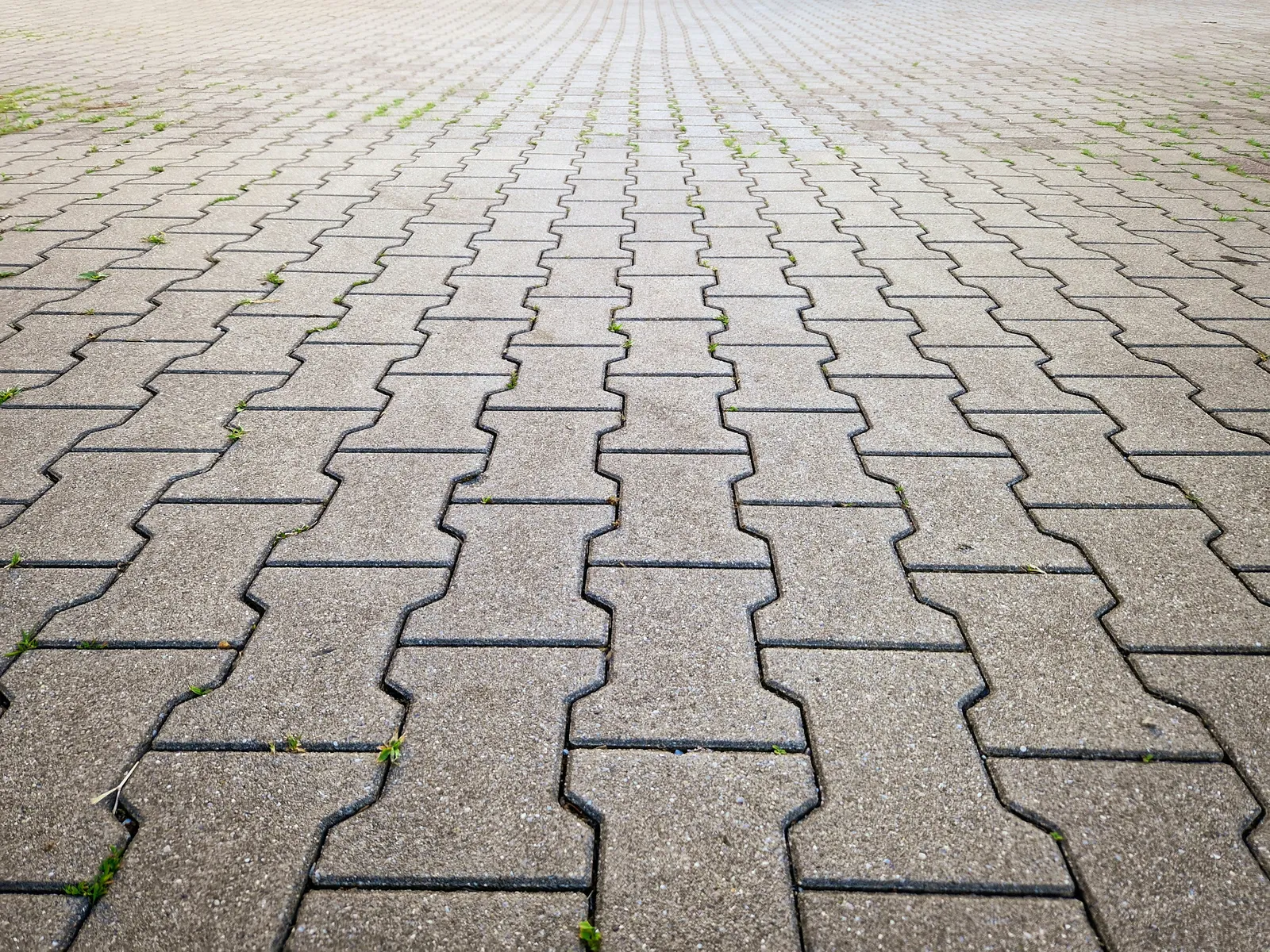

Real Interlocking Pavers Patios
Save the ones that feel right — then use the calculator below to see what your version would cost.
.webp)
.webp)
.webp)
Want a patio that moves with the ground instead of fighting it?
The system is tough — but your material list depends on paver size, base depth and layout. Get an exact estimate for your patio dimensions in under 60 seconds.
Free. No signup. No guessing.
